Slim Telemetry Module

The telemetry module is the uppermost tool in the stack. Its main function is to collect and combine digital data from all the other tools and to transmit this in a digital form via the logging wireline to the surface acquisition system. It also provides control functions and tool power to the other logging tools. The tool includes natural-gamma, CCL,mud-resistivity and borehole-tilt measurements.



Principle of data communications:

All tools in the stack communicate with the telemetry module over common internal RS485 data buses. The telemetry module organises this data and transmits it to the surface digitally using a high-speed proprietary RG protocol. Data is acquired on a depth basis with a sample interval that can be
selected to optimise measurement resolution and/or logging speed.


Features

Bi-directional digital transmission.
Compatible with industry-standard 5/16” or larger diameter cable



Measurement

  • Natural Gamma
  • Casing-collar locator (CCL)
  • Mud resistivity
  • Borehole inclination



Applications

  • Natural gamma
  • Lithology indication
  • Shale measurement
  • Bed- boundary/bed thickness measurement
  • Correlation between logs and wells
  • Mud resistivity
  • Correction of resistivity/conductivity logs
  • Casing collar locator
  • Location of casing shoe
  • Depth correlation between logs
  • Borehole tilt
  • QA of borehole construction
  • Bed thickness correction



Operating Conditions

Borehole type: 4” to 12” open hole



Specifications

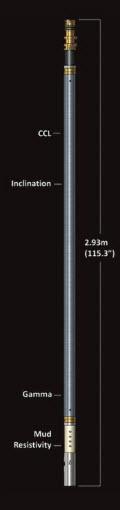

  • Diameter: 63mm (2.5”)
  • Length: 2.93m (115”)
  • Weight: 35kg (77lb)
  • Max. temperature: 125°C
  • Max. pressure: 86MPa (12,500psi)
